Does Your Roof Have Space for Solar Panels? Ireland 2026 Sizing Guide

A modern 440W solar panel needs ~2 m² of roof. The grant-maxing 6kW system needs 14 panels and around 28 m² of clear pitch. Here's exactly how to measure your Irish roof, what fits where, and the planning rules that decide what you can actually install in 2026.

The Irish solar grant covers up to 6kWp of panels — 14 modern panels, around 28 m² of roof space. That should fit comfortably on most 3-bed semis. But “most” isn't “all,” and the difference between a quote for 14 panels and a quote for 8 often comes down to chimneys, dormers, skylights, or planning setbacks the installer spotted on a satellite scan. This guide walks through exactly how to work out what your roof can hold — before you even pick up the phone.

How much roof space does one solar panel take?

In 2026, the residential standard is the 430–460 W full-black monocrystalline panel. Physical dimensions are remarkably consistent across brands:

Panel Class	Typical Dimensions	Footprint	Watt Rating
Standard residential	1.76 m × 1.13 m	~2.0 m²	430–460 W
Premium (REC, SunPower)	1.73 m × 1.13 m	~1.95 m²	450–480 W
Older/budget	1.72 m × 1.04 m	~1.8 m²	370–400 W

The rule of thumb that's worked for every Irish installer we've spoken to in 2026:

2 m² per panel, 2 panels per kW. So a 6 kW system needs roughly 28 m² of unshaded, structurally suitable roof.

Roof space needed by system size

System Size	Panel Count (440W)	Roof Space Needed	Typical Irish Home Fit
2 kW	5 panels	~10 m²	1-bed apartment, small terrace
4 kW	9–10 panels	~18–20 m²	Average 3-bed semi
6 kW	14 panels	~28 m²	Larger 3-bed or 4-bed
8 kW	18 panels	~36 m²	4-bed semi or detached
10 kW	22–23 panels	~45 m²	Large detached with two pitches

For a deeper cost-vs-output comparison across these sizes, see our 2026 system-size cost guide.

How to measure your roof from your phone (3 minutes)

You don't need an installer to make a first-pass estimate. Use Google Maps satellite view:

1. Open Google Maps and search for your address. Switch to Satellite view.
2. Zoom in until your house fills the screen.
3. Right-click one corner of the south- or west-facing roof pitch and select “Measure distance”.
4. Click the other corner of the same edge. Note the metres.
5. Measure the perpendicular edge (gutter to ridge). Multiply: width × height = m² in plan view.
6. Add 15–20% to account for the pitch angle (your panels lie along the slope, not flat).

For a typical 1980s 3-bed semi, the south-facing rear pitch usually comes out as 6–7 m wide × 4–5 m up the slope = 24–35 m². That's why 6 kW (28 m²) is the most-sold residential install.

The setback rules: 500mm and what they cost you

Every Irish solar install must keep panels clear of certain edges and obstructions for fire safety and roof access. The 2026 Irish norms used by most SEAI-registered installers:

• 500 mm from any roof edge (gutter, ridge, hip, valley)
• 500 mm clearance around chimneys, vents, soil pipes
• Full panel-width clearance from skylights and dormer windows (you can't shadow a Velux)
• 1.2 m clear walkway access for maintenance in some commercial-grade installs

The practical hit: a 30 m² pitch with one chimney and a skylight loses roughly 4–6 m² to setbacks. That's 2–3 fewer panels than the raw area suggests.

Roof orientation: how compass direction changes everything

Roof aspect changes your annual yield substantially. Same 6 kW system, different orientations:

Roof Aspect	Yield (kWh/kWp/yr)	6 kW Annual Output	vs South Baseline
Due south, 30° pitch	920	5,520 kWh	100% (baseline)
South-east or south-west	870	5,220 kWh	95%
Due east or due west	770	4,620 kWh	84%
North-east or north-west	600	3,600 kWh	65%
Due north (avoid)	480	2,880 kWh	52%
Flat roof (10° mount)	820	4,920 kWh	89%

A north-facing roof drops your yield by half. Most Irish installers will refuse to mount panels on a roof that faces 290°–70° (the “northern” sweep) because the payback period stretches beyond 15 years.

Good news for east/west pitches: while annual yield drops 16%, your self-consumption profile often improves. East pitches produce more in the morning when you're home for breakfast, west pitches more in the evening when you're cooking dinner. That changes the economic case — you use more of what you make instead of exporting it.

Shading: the silent killer of solar output

One shaded panel can drag down the output of an entire string in poorly-designed systems — sometimes by as much as 30%. In Ireland in 2026, three shading sources matter most:

• Chimneys on the same roof — cast moving shadows across the array depending on time of day and season
• Mature trees — especially evergreens (their winter shade matters when you most need every kWh)
• Neighbouring buildings — problem on terraces and townhouses in older Dublin/Cork streets

If you have any shading, ask the installer about microinverters or DC optimisers. Both technologies isolate each panel's output so a single shaded module doesn't crash the others. Expect a 5–10% cost premium for either approach — usually justified if shading affects more than one or two panels. Our 2026 inverter guide breaks down the options.

Roof material: what works and what doesn't

Almost every common Irish roof type accepts panels with the right mounting kit. Here's the 2026 install reality:

Roof Type	Verdict	Notes
Concrete / Tegral tile	Best	Standard hooks, fastest install
Natural slate	Good	Special slate hooks needed; careful handling
Trapezoidal metal sheet	Good	Clamps direct to seams, very fast
Standing-seam metal	Excellent	Non-penetrating clamps, premium look
Felt & bitumen flat roof	OK	Ballasted (weighted) frames; no penetration
Thatched roof	No	Use ground-mount or outbuilding instead
Asbestos sheet (older)	Replace first	Cannot drill safely; replace then install

If your roof is more than 25 years old or due replacement within 5 years, install the new roof first — lifting panels later costs €1,200–€2,000 you don't want to spend twice.

Planning permission for solar panels in 2026

Since the October 2022 SI 405/2022 changes, almost all residential rooftop solar in Ireland is exempt from planning permission. The rules in 2026:

• Houses: Unlimited rooftop solar coverage is exempt — even covering 100% of the roof.
• Apartments: Exempt up to 60% of roof area; must not protrude more than 1.5m from the roof plane.
• Solar Safeguarding Zone (around Dublin Airport, Shannon, Cork): Limits still apply — check with your local authority.
• Protected structures and ACAs: Planning permission still required for any panels visible from a public road.

For ground-mount in your garden, panels remain exempt up to 25 m² total and 2.0 m maximum height. Beyond that, planning permission is needed.

No roof space? Your options in 2026

If your roof genuinely can't accommodate solar, three Irish alternatives are now well-established:

1. Ground-mounted system in the garden. Works well on south-facing land. Same panels, different mounting structure — usually adds €800–€1,500 to install cost vs roof.
2. Garden building solar — install on a shed, garage, or workshop roof if those have better aspect than your house.
3. Plug-in / balcony solar — the Lidl-style 600–800W small kits that hang off a balcony rail or sit on a flat roof. Generate ~600 kWh/yr and pay back in 3 years.

Frequently asked questions

How many solar panels fit on a typical Irish 3-bed semi?

Typically 10–14 panels on the south or west pitch alone, more if you use both pitches. The grant-capped 6 kW system (14 panels) fits 80% of 3-bed semis in Ireland once chimney and skylight setbacks are accounted for.

What's the minimum roof space for solar in Ireland?

Below 10 m² clear roof area, conventional rooftop solar usually isn't viable — the fixed costs (scaffolding, ESB notification, inverter, electrical) make a 1–2 panel system uneconomic. At that size, look at a plug-in balcony kit instead.

Can I split panels across two roof pitches?

Yes — this is standard practice when one pitch isn't big enough. You'll need either a multi-MPPT inverter (handles two different production curves) or a hybrid inverter with multiple DC inputs. Slight efficiency loss but rarely material.

Do I need planning permission for solar panels?

No, in almost all residential cases. Since SI 405/2022, rooftop solar on houses has unlimited exemption from planning permission. Exceptions: protected structures, ACA areas, certain airport safeguarding zones, and ground-mount over 25 m².

Will solar panels damage my roof?

No, if installed properly. Modern hook-based systems sit on rafters, not tiles, and a competent SEAI-registered installer leaves your roof watertight. Manufacturers and installers both typically warranty against roof damage for 10 years.

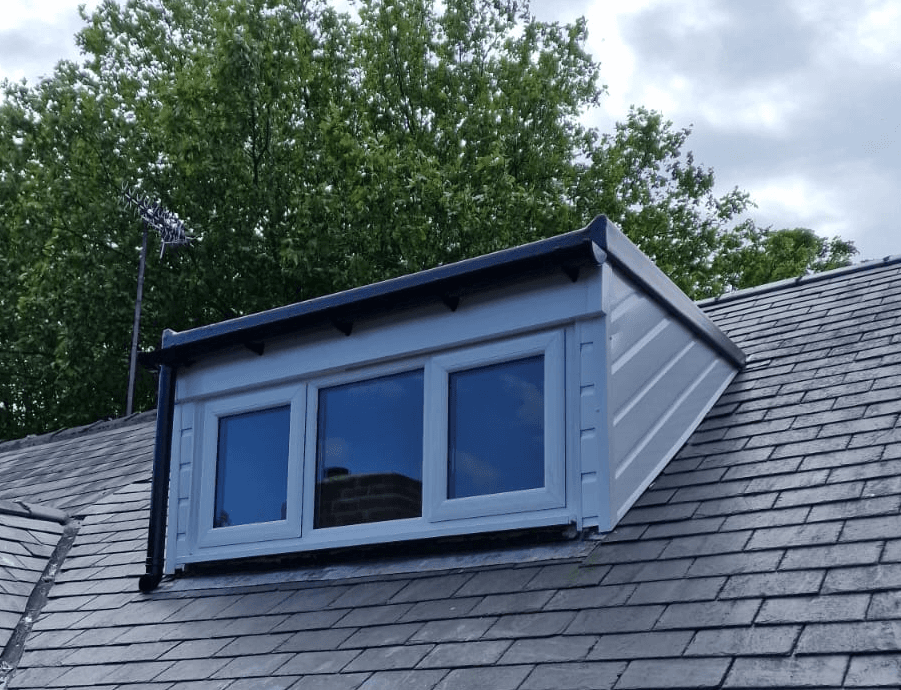

What if my roof has chimneys, skylights, or dormers?

Each obstruction costs you 1–2 panels of space due to setback rules. Most installers can still design around them — expect a 10–20% reduction in panel count compared to a clean rectangular pitch of the same area.

Is an east-or-west-facing roof worth it?

Yes. You'll lose 16% annual yield vs south, but the morning or evening generation curve usually matches household usage better, lifting self-consumption. For most Irish homes the payback period is only 6–12 months longer than a south-facing system.
